Reference

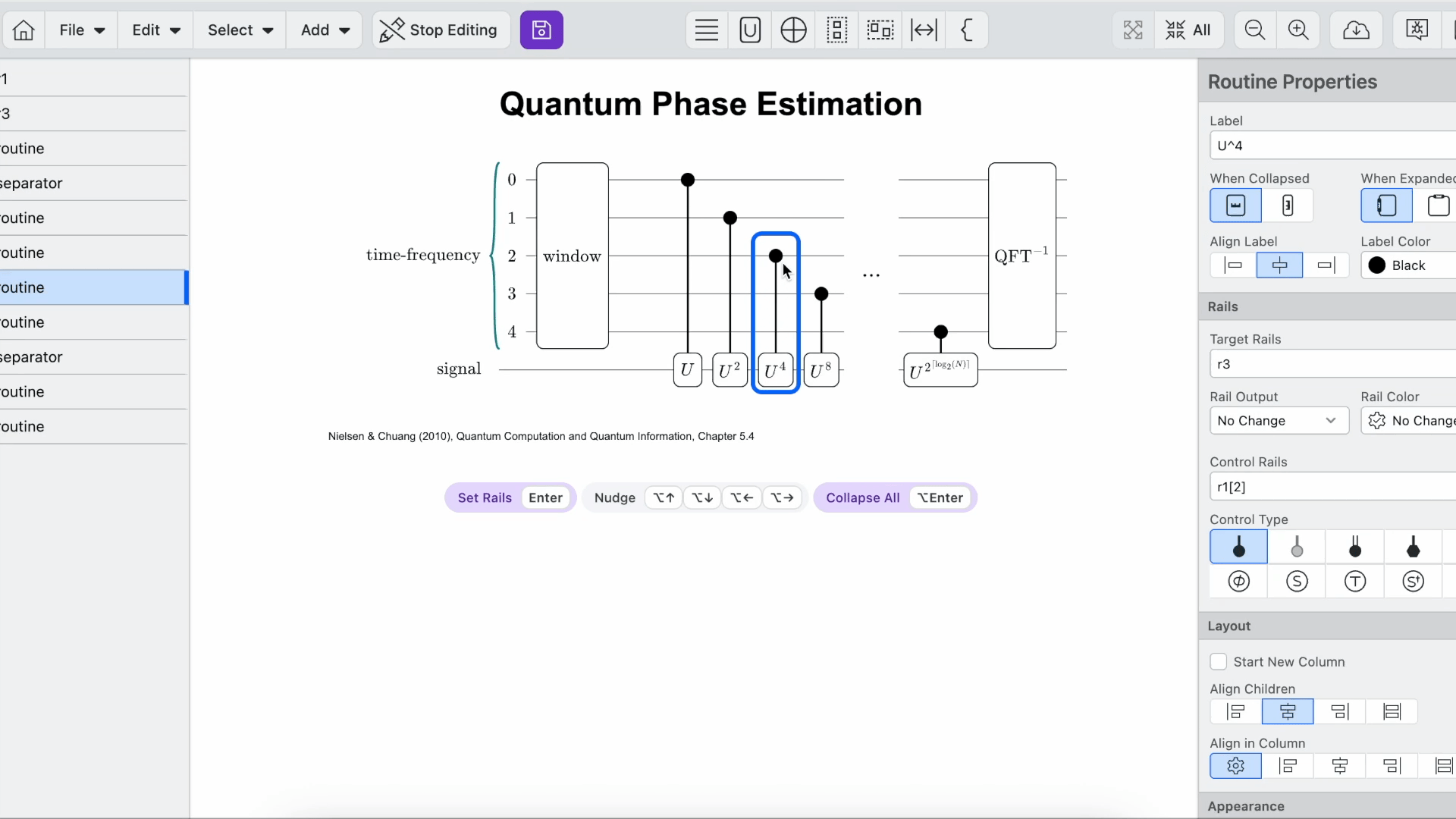

Click to Set Rails

To select the rails connected to an element, first click the circuit element, then hold enter to open the Set Rail menu.
In this menu, click inside the dashed circles to cycle through the available options (which vary by element type).

For example, Gates cycle between:

• Adding another of the chosen circuit element (e.g., If you have an X gate, clicking an empty rail will add another X gate on that rail)
• Adding a control
• Adding a falsy control

If the selected element is inside a Routine, the Routine will automatically expand or contract to fit its children as you make changes.

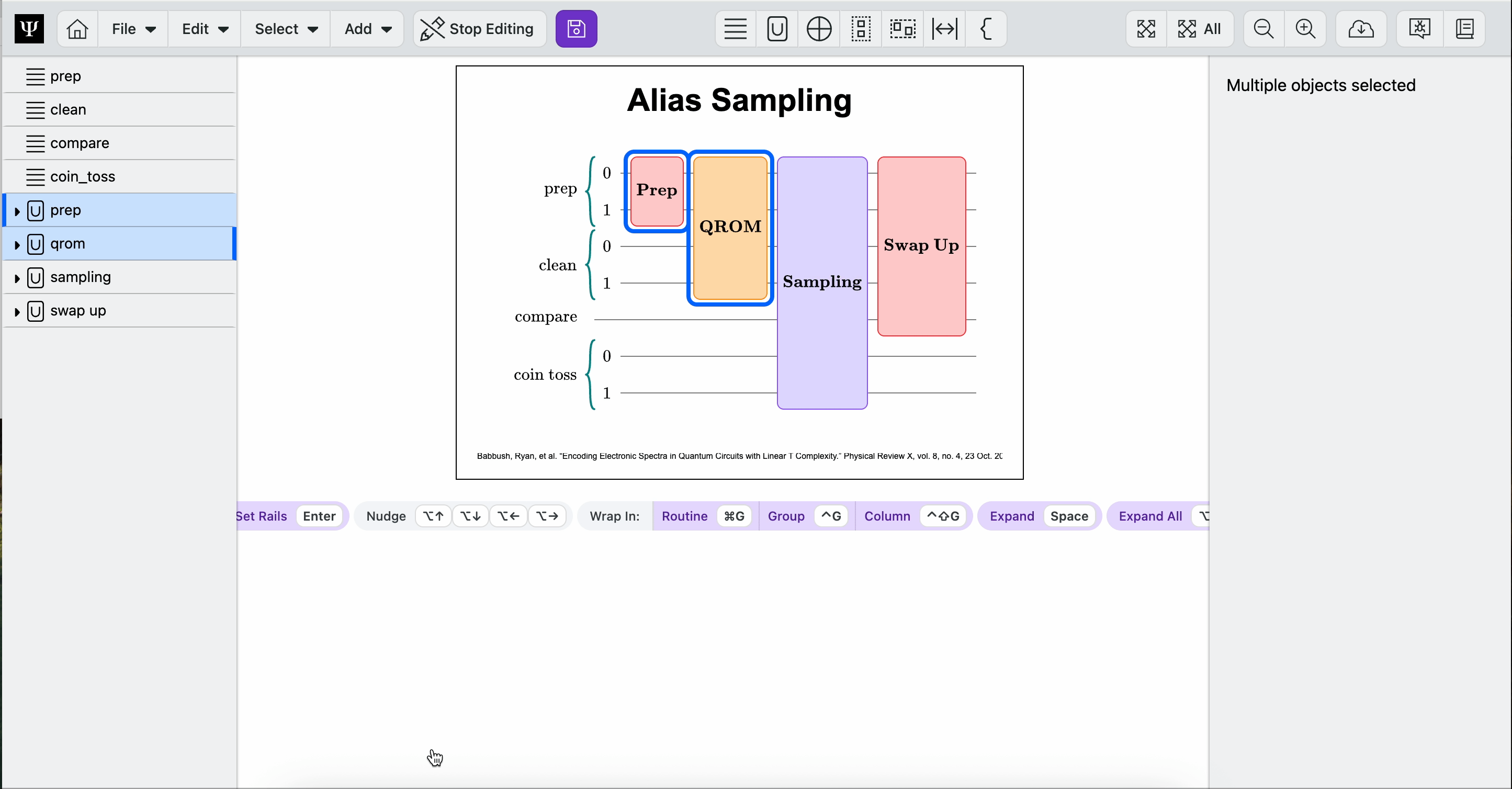

Nudge

Nudging lets you move cirucit elements up, down, left, or right one space. Click ⌥ + arrow (alt + arrow on Windows) to nudge the element. Nudging works for any selected cirucit elements. Note that you cannot nudge circuit elements inside or outside of routines, groups, or columns. To get elements into grouping structures, either drag and drop them, or use the Wrap in commands.

Addressing Rails

Rails can be addressed specifically by labeling them within brackets. For example, if you only want to apply the Hadamard gate to rails 1 and 2 of register a, you can enter a[1,2] into the Rail Names field. You can specifying multiple rails separated with a comma, e.g. a[0],0[3], or with pythonic range syntax: a[0:3].

Circuit Styling

There are many ways to style different circuit elements. The image below shows a sample of the different ways you can customize gates and routines in your circuit.

Keyboard Shortcuts

Circuit

Action	iOS	Windows
Create New	⌘N	ctrl + N
Save Circuit	⌘S	ctrl + E
Save Circuit as	⌘⇧S	ctrl + shift + S

Edit

Action	iOS	Windows
Start/Stop Editing	⌘E	ctrl + E
Undo	⌘Z	ctrl + Z
Redo	⌘⇧Z	ctrl + shift + Z
Duplicate	⌘D	ctrl + D
Cut	⌘X	ctrl + X
Copy	⌘C	ctrl + C
Paste	⌘V	ctrl + V
Paste After	⌘⇧V	ctrl + shift + V
Delete	⌫	backspace
Zoom Out	⌘-	ctrl + -
Zoom In	⌘+	ctrl + +
Zoom to 100%	⌘0	ctrl + 0

Select

Action	iOS	Windows
Expand/Collapse	space	space
Select Previous	←	←
Select Next	→	→
Select Up	↑	↑
Select Down	↓	↓
Select Parent	⌘↑	ctrl + ↑
Select Child	⌘↓	ctrl + ↓
Select First	home	home
Nudge Left	⌥←	alt + ←
Nudge Right	⌥→	alt + →
Nudge Up	⌥↑	alt + ↑
Nudge Down	⌥↓	alt + ↓

Add

Action	iOS	Windows
Add Register	⌘1	ctrl + 1
Add Routine	⌘2	ctrl + 2
Add Gate	⌘3	ctrl + 3
Add Column	⌘4	ctrl + 4
Add Group	⌘5	ctrl + 5
Add Separator	⌘6	ctrl + 6
Add label	⌘7	ctrl + 7
Wrap Selection in Group	⌘G	ctrl + G
Wrap Selection in Routine	⌘⇧G	ctrl + shift + G
Add Register within selected	⌘⌥1	ctrl + 1
Add Routine within selected	⌘⌥2	ctrl + alt + 2
Add Gate within selected	⌘⌥3	ctrl + alt + 3
Add Column within selected	⌘⌥4	ctrl + alt + 4
Add Group within selected	⌘⌥5 ctrl + alt + 5
Add Separator within selected	⌘⌥6	ctrl + alt + 6
Add label within selected	⌘⌥7	ctrl + alt +7

Hold ⌥ (alt on Windows) and click to add within

Hold ⌥ (alt on Windows) and click the add actions to add within a selected circuit element

How to share a circuit diagram via GitHub

It is possible to share cirucit diagrams with colleagues with Circuit Designer ⧉. After you download the circuit, you can use Github to share circuit diagrams. We recommend hosting all files that you intend to share with the wider community on a public GitHub page To share via a public github repository, follow the following steps:

1. Download your circuit to your local device

2. Add your circuit to your GitHub repository (e.g., Circuit Hub ⧉)

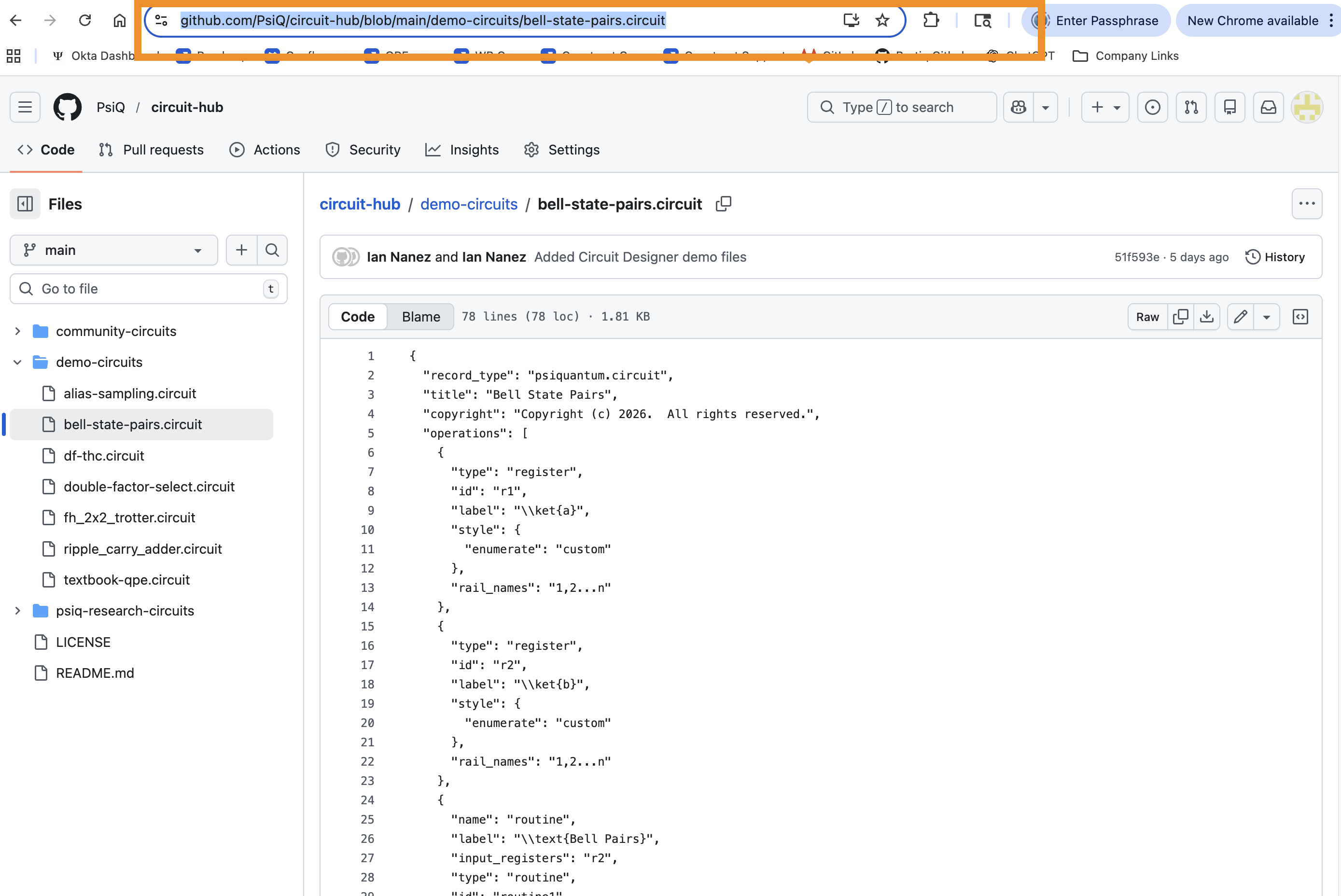

3. Navigate to your file is on github.com

4. Copy the file's URL (e.g.,https://github.com/PsiQ/circuit-hub/blob/main/demo-circuits/bell-state-pairs.circuit ⧉

1. Navigate to Circuit Designer ⧉

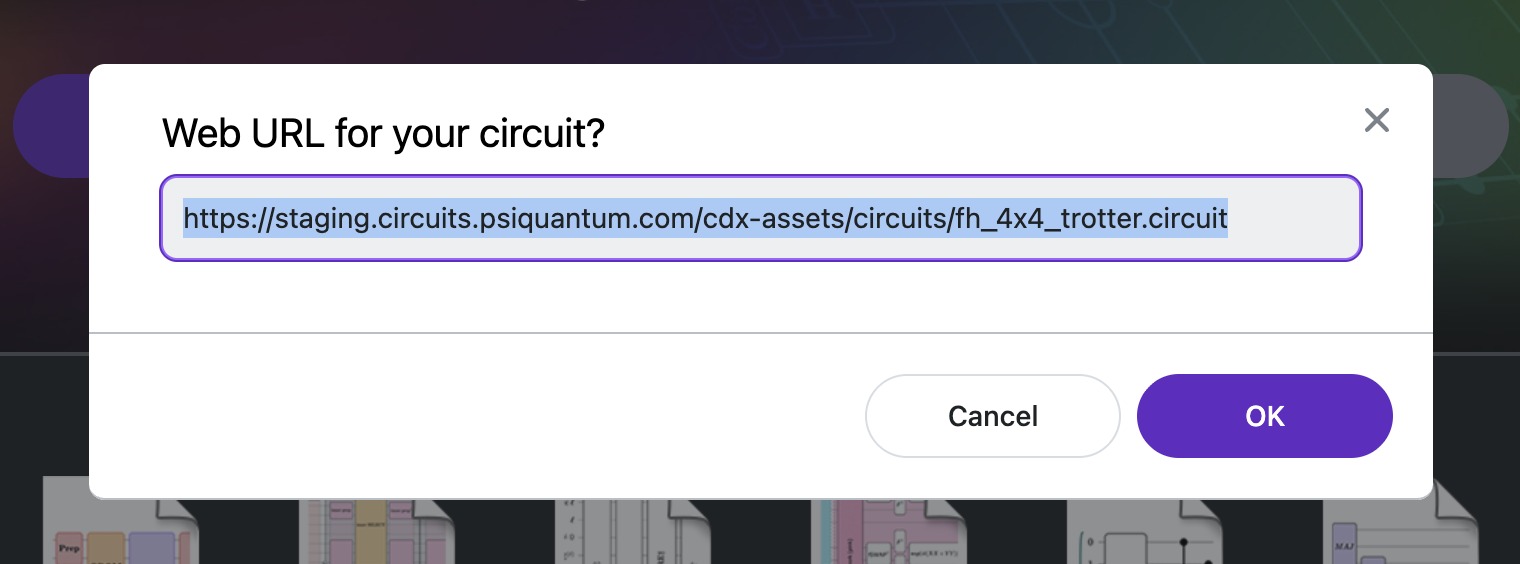

2. Click Open From URL, Paste the URL into the field, and click Ok

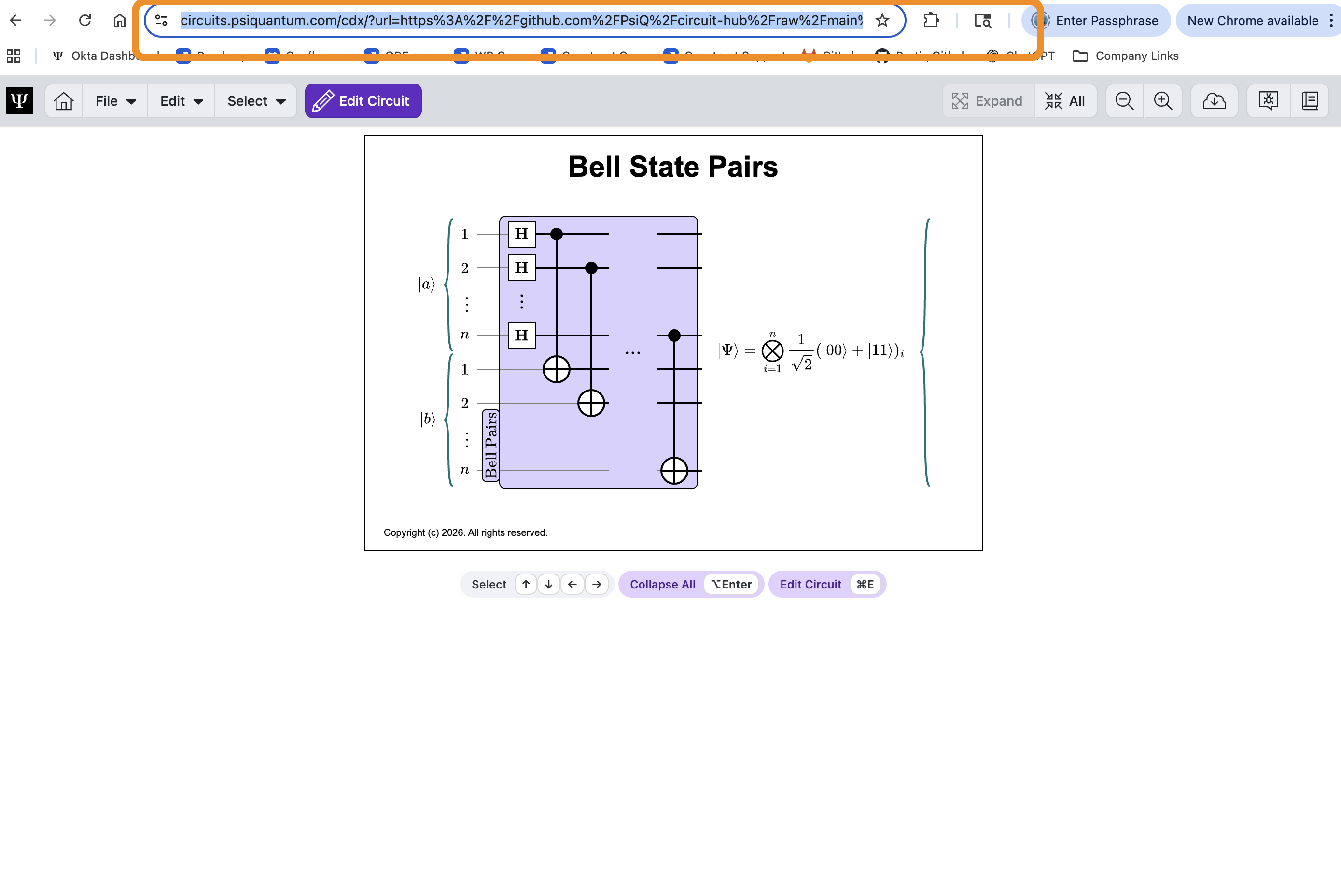

3. Copy and share the URL Share this link: here is an example: https://circuits.psiquantum.com/cdx/?url=https%3A%2F%2Fgithub.com%2FPsiQ%2Fcircuit-hub%2Fraw%2Fmain%2Fdemo-circuits%2Fbell-state-pairs.circuit ⧉

You do not need to log in to Circuit Designer to view a circuit.
